Total Racing Products Flex Fuel Kit CAN bus Version (Electronics Only) – R35 GTR
Do you have your own flex fuel setup or utilize a custom setup with your own lines and/or bracket? We offer just the electronics of our flex fuel offering so you can easily connect your ethanol composition sensor to your Ecutek-equipped R35 GTR.

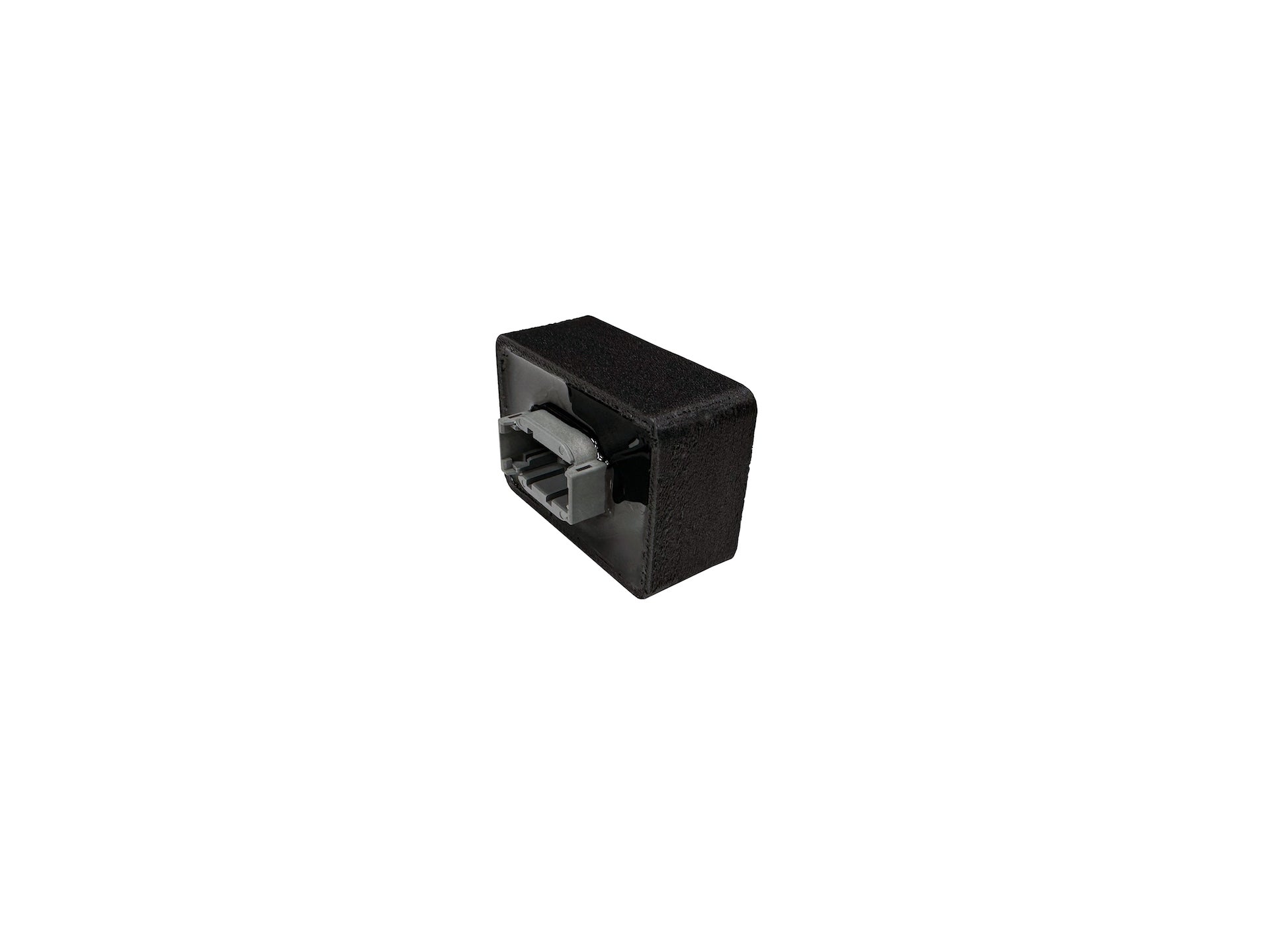

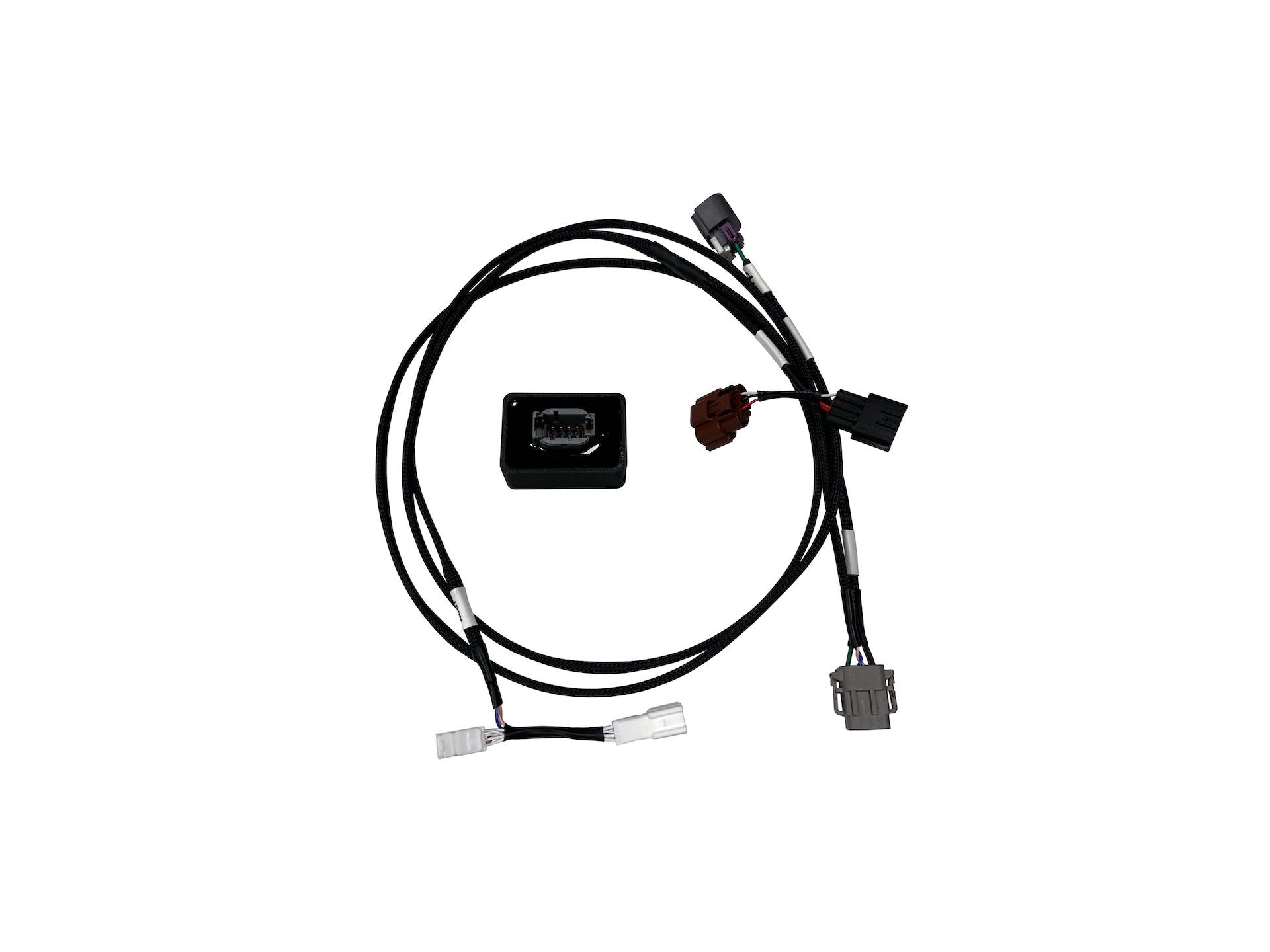

Our CAN-enabled ethanol conversion analyzer takes up just a small amount of real estate in your GTR’s battery box. Just plug the TRP harness’s DTM-8 connector into the CAN-enabled ECA conversion box, the next connector into the secondary air pump connector to the side of your battery, a jumper harness inside your IPDM, and the last connector into your flex fuel sensor.
ATTENTION TUNERS:
Our CAN bus box outputs a signal to the GTR’s CAN bus with the following specs:
CAN Bus ID Standard (11 bit)
CAN Bus ID (HEX) 0x00EC
CAN Bus Update Rate 250 ms (4 Hz)
CAN Bus Speed 500 Kbps
CAN DATA:
Data 0: E % = 8 bit
Data 1: Fuel Temperature (C) = 8 bit – 40
Data 7: FF Sensor Status
0x00 Sensor OK
0x01 Sensor fault
Default values for ethanol on sensor failure: 100% (CAN Data0: 100)
Default values for temperature on sensor failure: -40C (CAN Data1: 0)
When tuning with Ecutek, you can select the default settings for use with a Zeitronix box for quick functionality as we use the same protocol to create a universal experience.
Key Information for All Our Products
Carbon Weave: Each of our products features our superior-quality 2x2 carbon weave as standard. We strive to cater to the diverse preferences of our customers, hence we also offer alternate options like matte carbon, forged carbon, and 1x1 carbon upon request. You can make such requests via our "Custom Product Inquiry Section".
Durability & Protection: Our products are designed not only to enhance aesthetics but also to stand the test of time. We use the highest grade UV protection available for all our products to shield them from sun damage and minor road debris. This ensures the longevity of our products, keeping them looking their best for longer.
Warranty: We stand behind the quality of our products, offering a 30-day standard warranty for all items. This covers any issues with fitment or initial damages. Please be aware, however, that we are unable to extend this warranty to cover damages that occur post-installation.
FAQ:
Why Us?
At our company, we pride ourselves on producing exceptional quality products by designing our own unique molds. This gives us the ability to uphold the highest standards of quality control throughout the production process. Ensuring customer satisfaction is at the heart of what we do, and we promise to provide responsive, dedicated service at every step.
In our pursuit of excellence, we use only top-tier materials for our products, because we understand the importance of quality and durability for your vehicles. As passionate car enthusiasts ourselves, we adhere to a fundamental principle - we won't sell anything that we wouldn't confidently use on our own personal vehicles. Rest assured, when you choose our products, you're choosing the best for your vehicle.
What is Dry Carbon?
Dry carbon, also known as pre-preg carbon, is a high-performance carbon fiber material used extensively in aerospace and automotive industries for its lightweight and strength properties. The production process involves pre-impregnating the carbon fiber with resin, followed by baking it in an autoclave to remove any trapped air and excess resin.
Can I request a custom design or specification?
Yes, we understand that our clients have unique needs. If you have a specific design or specification in mind, you can reach out to us via our "Custom Product Inquiry Section".
Expedite Order: Expediting your order will lessen the wait for both Production and Shipping, with this option production will take 1-2 weeks and shipping will take 7-10 days.
